Overhead water tank steel stanchions tank stand

　　The overhead water tank,steel stanchions tank stand can be painted and hot-dip galvanized, with safe, sturable, anti-corrosive, shock proof, and earthquake resistance performance. All the parts will be assemble and installed by bolts,no need weld at site.

　　1) The steel water tower/stand specifications:

　　Steel Column/Steel Main Beam/Secondary Beam: Q355B, painted / hot-dip galvanized thickness 85um

　　Brace/Ladder with protection/Handrail/Steel Grating: Q235B, painted /hot-dip galvanized thickness 85um

　　Bolts: High strength10.9s/8.8s,Dacromet treatment

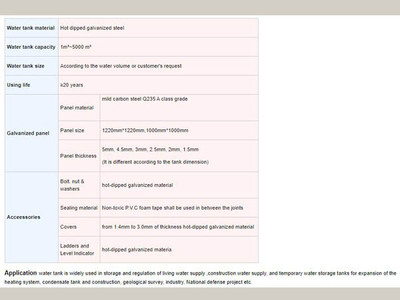

　　2) Water tank specifications:
